SFArchiver SFX for PalmOS

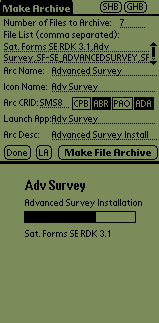

Sample App and Archive Self-Extraction Display
Sample App and Archive Self-Extraction Display

V1.9 Released February 27, 2003

SFArchiver is a SatForms plugin extension that enables you to bundle specified Palm files together into a single-prc self-extracting archive. This archive is a handy tool for both program installation and on-device file-backup purposes.

Features include:

  • Installation Enhancement Utility
    As a SatForms developer you are aware that most SF applications require many files to be installed on the Palm. There is the RDK engine, your program pdb file, all of the data table pdb files, and probably a few extensions. SFArchiver lets you take all of those files and package them up into a single-prc self-extracting archive.

    Now you can distribute standalone (non-conduit-syncing) apps significantly easier, since you do not need to include any kind of installation program. Just supply the single prc which users drop onto their Palm using the standard Palm Install Tool. When the archive icon is tapped by the user, it self extracts into all of the files you packaged together, and then optionally runs an application program you specify (most likely the application they just installed from your archive). The archive file is automatically deleted when the files have been extracted (this is optional), so it is a simple "install it and forget it" process.

    Of course, you can use these single-prc archives for installation of applications that do sync with a desktop or server database (not just standalone apps), but in those cases you still need an installation program on the PC to install the conduit.

  • On-Device Backup Utility
    The second major application of the SFArchiver extension is to let you perform on-device archiving of your files as a backup tool.

    Using SFArchiver, you could program automatic data/program archiving at scheduled intervals, perhaps after so many new records have been added, or perhaps every x number of days, or according to whatever criteria you deem appropriate. The archiving process can be fully automated, eliminating the need for user input.

    The self-extracting backup archive can be unpacked by launching it via script from your SF app, using the LaunchApp command included in the extension. This command lets you specify which app to launch at runtime, rather than just at compile time.

A sample application is included that demonstrates all of the features of the extension. The sample app can also be used as the tool for creating archives of your application for easier installation.

Download the SatForms Pong sample app installation archive to test the extraction process (incl. SF 522a RDK engine)

Evaluation Version Download

An evaluation version of this extension is available so you can try it out before deciding to purchase. To download an evaluation version of this extension, complete the Product Evaluation Request Form with your full address information. Eval version download instructions will be supplied upon completion of the request form. The evaluation versions of the extensions display a notice screen each time they are run, but do not time out. They are intended for internal testing use only and may not be distributed.

Site License Available

You can purchase a site license for this product that enables its use by an unlimited number of developers (persons) at a single office location. Site licenses cost 2.5 times the single license fee. To purchase a site license, simply enter a quantity of 2.5, click on the ADD button to add it to your shopping basket, and then click View Basket to complete your order. Thank you!

Important Notes:
  • Archives created with SFArchiver CAN be extracted directly from FlashROM to RAM, without needing to copy the archive to RAM first.
  • SFArchiver runs completely on the Palm, not on a PC or Mac (but works fine under the PalmOS Emulator).
  • SFArchiver does not compress the files it places in an archive.
  • SFArchiver is not compatible with the current version of the !pZip utility.
  • Archives created with SFArchiver CANNOT be extracted directly from Visor memory expansion modules (must be copied to RAM first).
  • PalmOS5 Ready!
License Information:
  • PalmDataPro extensions include a royalty-free per-developer runtime license
  • You can distribute the extension PRC files royalty-free with your app but you need to purchase a separate license for each SF developer (person).
Reference: SFX-025

Manufactured by: Thacker Network Technologies Inc.

Payment Methods:
American Express, MasterCard, Visa, Money Order or Wire Transfer

All prices in US dollars. Convert this to your own currency. Canadian GST/HST tax will be added to purchases made by Canadian residents. The software will be emailed to you upon receipt of payment.

Currency US$
Ref Description Price Quantity Required Add To Basket
SFX-025  SFArchiver SFX for PalmOS  60.00 each
