PRL Software's BarChart SFX for PalmOS

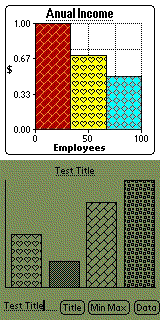

Sample application
Sample application

Version 1.0 Released August 12, 2001

The Bar Charting extension is designed to provide the easy creation of fast, dynamic bar charts. The extension is fast since it is written in C using PalmOS graphics APIs. The extension is easy because it plugs straight into Satellite Forms. The borders, fill pattern, colours, chart title, axis titles, grid lines, markers and axis minimums/maximums are all configurable and can be altered dynamically. Data can also be added and removed dynamically which means that you have the option of utilising Satellite Forms variables or fields from tables.

The Bar Charting extension has the ability to show a legend of all data contained within the graph.

The charting extension has been tested on PalmOS 3.0 and all PalmOS versions there after. The extension may work on earlier PalmOS versions but remains untested.

The bar charting extension comes with a custom pattern creation program for Windows. This pattern creation program was used to create the fill patterns shown in all the example pictures. The extension also comes with a full set of already created patterns (in black and white - colour can then be set).

As shown above in the sample chart, the bar charting extension allows the setting of foreground and background colours. The colours can be any standard colour or, alternatively any custom colour.

Evaluation Version

You can download an evaluation version of the BarChart Extension.

This extension is manufactured by PRL Software and is marketed by NOTE: This extension is no longer supported by PRL Software, is not supported by PalmDataPro, and is available on an AS IS basis only.

The extension includes a royalty-free per-developer runtime license, meaning you can distribute the extension PRC files royalty-free with your app but you need to purchase a separate license for each SF developer (basically the same as the SF Standard Edition license).

Site License Available

You can purchase a site license for this product that enables its use by an unlimited number of developers (persons) at a single office location. Site licenses cost 2.5 times the single license fee. To purchase a site license, simply enter a quantity of 2.5, click on the ADD button to add it to your shopping basket, and then click View Basket to complete your order. In the Comments section of your order, please enter the text "Site License". Thank you!

System Requirements:
  • This Extension has been tested on PalmOS 3.0+ and SatForms 3.1+.
  • PalmOS5 Ready!
Reference: PLS-008

Manufactured by: PRL Software

Payment Methods:
American Express, MasterCard, Visa, Money Order or Wire Transfer

All prices in US dollars. Convert this to your own currency. Canadian GST/HST tax will be added to purchases made by Canadian residents. The software will be emailed to you upon receipt of payment.

Currency US$
Ref Description Price Quantity Required Add To Basket
PLS-008  PRL Software's BarChart SFX for PalmOS  60.00 each
